Session 21 code

Author

Carolyn Koehn

Load libraries:

Code

library(terra)
library(spDataLarge)
library(sf)

Overlays

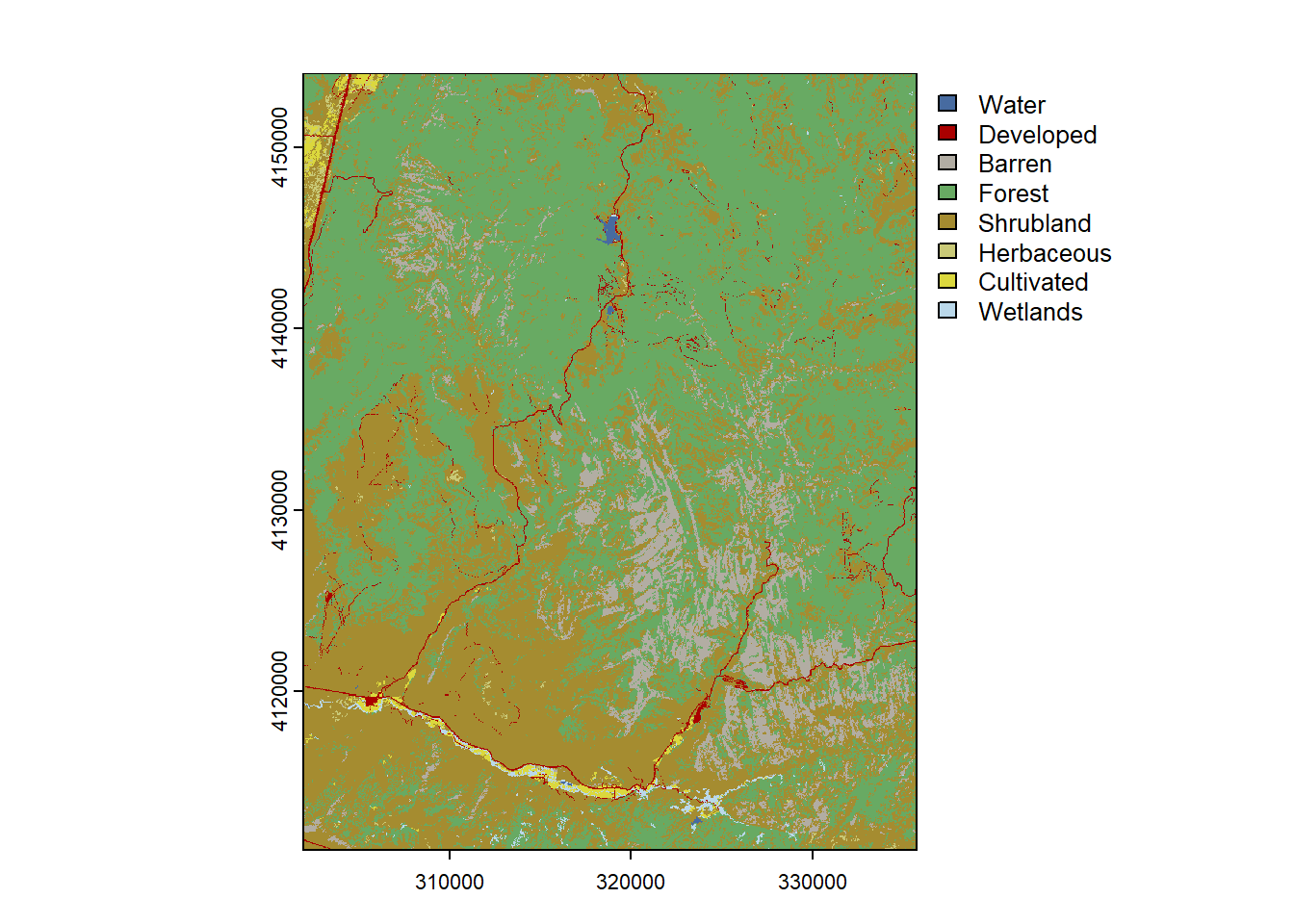

Get land cover data:

Code

nlcd <-  rast(system.file("raster/nlcd.tif", package = "spDataLarge"))
plot(nlcd)

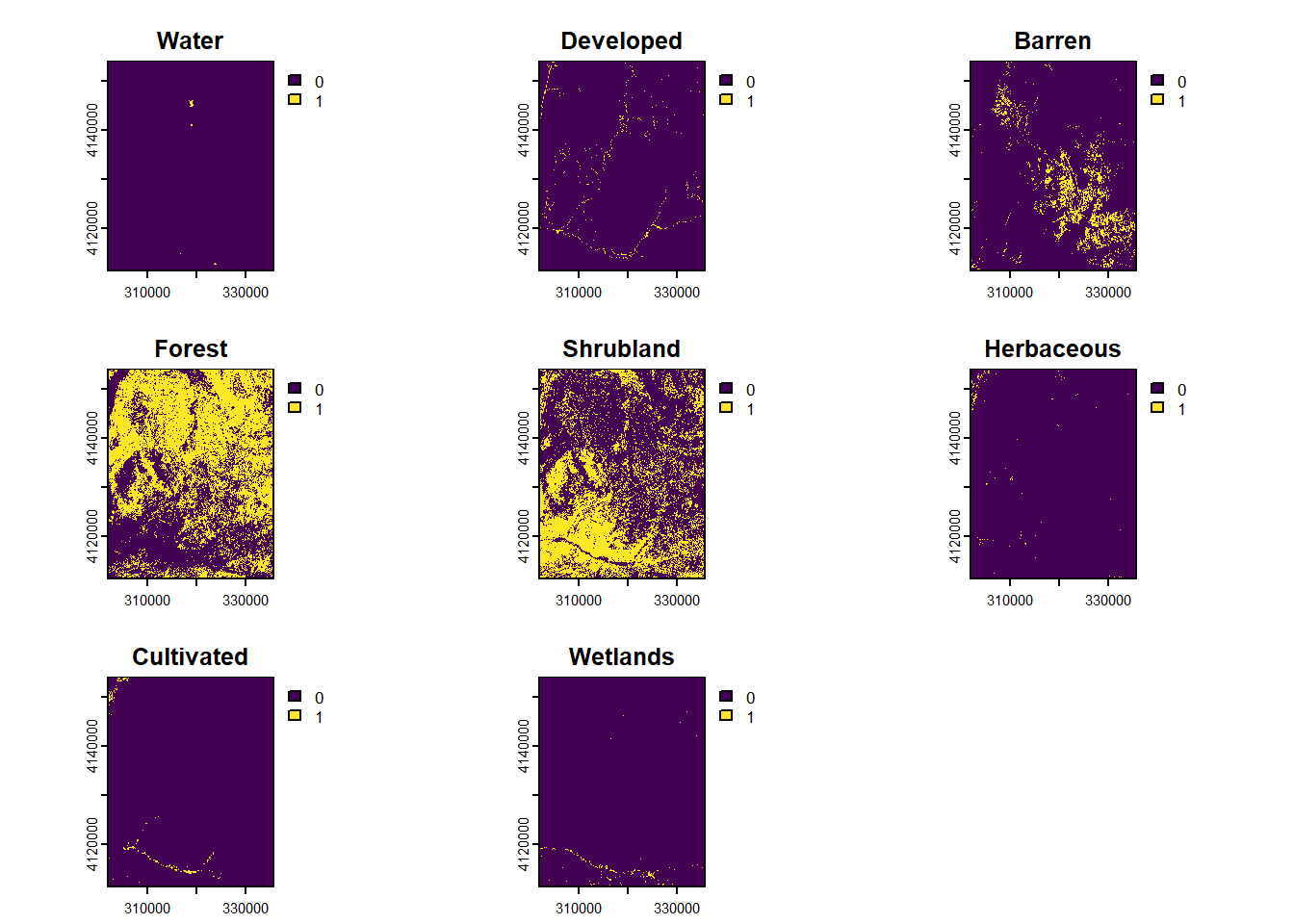

Separate categorical raster into Boolean layers:

Code

nlcd.segments <- segregate(nlcd)
# rename layers of raster stack
names(nlcd.segments) <- levels(nlcd)[[1]][-1,2]
plot(nlcd.segments)

Get slope data:

Code

# elevation data
srtm <- rast(system.file("raster/srtm.tif", package = "spDataLarge"))
# get slope
slope <- terrain(srtm, v = "slope")

Prepare overlay layers:

Code

# only slopes less than 10 are suitable
suit.slope <- slope < 10
# only shrubland is suitable
suit.landcov <- nlcd.segments["Shrubland"]
# make sure raster layers align
suit.slope.match <- project(suit.slope, suit.landcov)

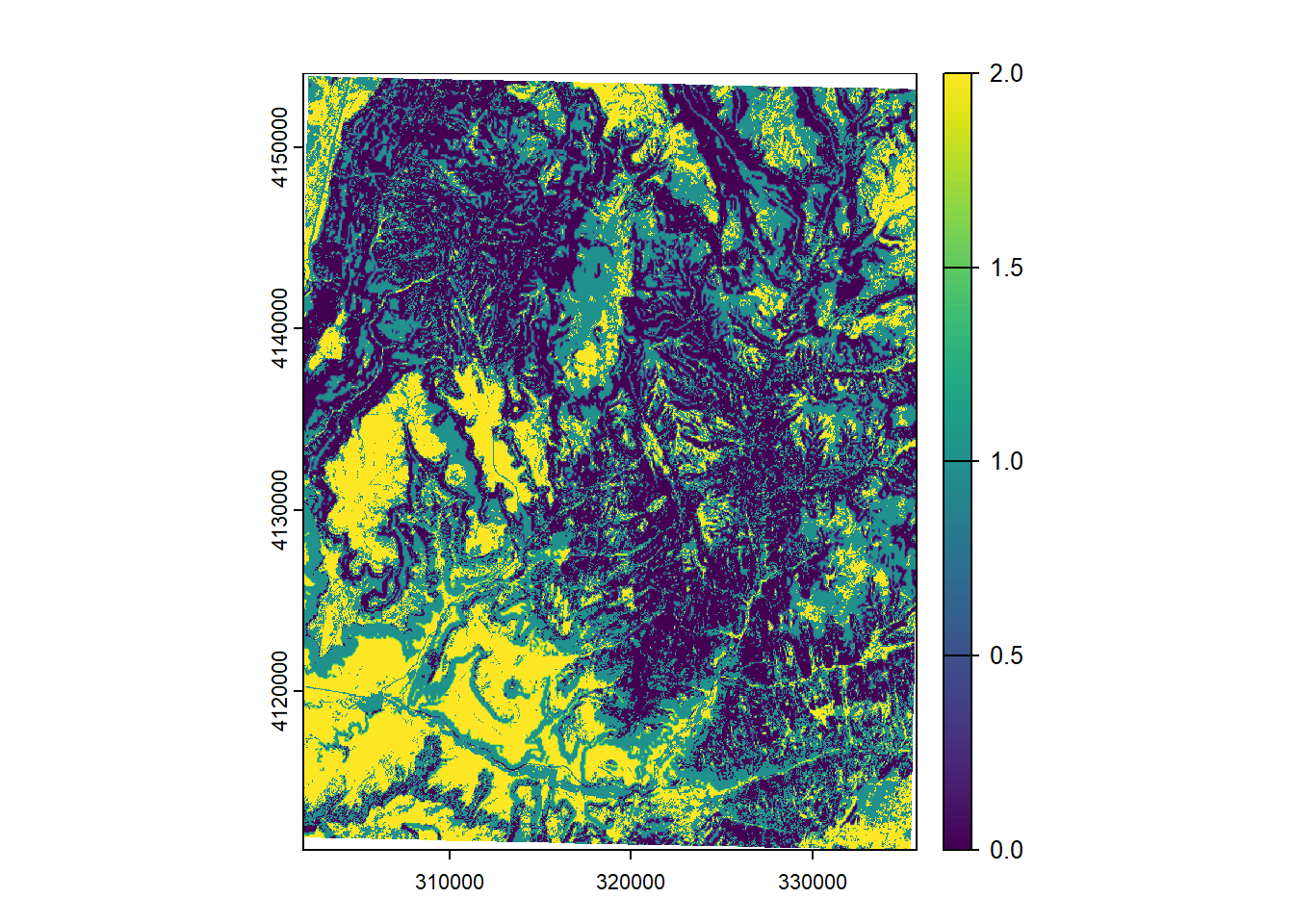

Run overlay analysis:

Code

suit <- suit.slope.match + suit.landcov

plot(suit)

Logistic regression

Get data:

Code

# get presence-absence simulated data
presabs <- st_read("/opt/data/data/presabsexample/presenceabsence.shp", quiet = TRUE)

# get predictor data file paths
preds.list <- list.files("/opt/data/data/presabsexample", "grd$", full.names = TRUE)
# get predictors as raster stack
pred.stack <- rast(preds.list)
# rename layers of raster stack
names(pred.stack) <- c("MeanAnnTemp", "TotalPrecip", "PrecipWetQuarter", "PrecipDryQuarter", "MinTempCold", "TempRange")

Extract predictor data at each point and add presence/absence column called y:

Code

pts.df <- terra::extract(pred.stack, presabs)
pts.df[,2:7] <- scale(pts.df[,2:7])

pts.df$y <- presabs$y

Fit logistic regression model:

Code

logistic.carolyn <- glm(y ~ TempRange + PrecipDryQuarter,
                        family = binomial(link = "logit"),
                        data = pts.df)

summary(logistic.carolyn)


Call:
glm(formula = y ~ TempRange + PrecipDryQuarter, family = binomial(link = "logit"),
    data = pts.df)

Coefficients:
                 Estimate Std. Error z value Pr(>|z|)
(Intercept)       -1.2820     0.3789  -3.384 0.000715 ***
TempRange         -3.5156     0.7984  -4.403 1.07e-05 ***
PrecipDryQuarter   0.4157     0.5938   0.700 0.483969
---
Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

(Dispersion parameter for binomial family taken to be 1)

    Null deviance: 125.37  on 99  degrees of freedom
Residual deviance:  59.18  on 97  degrees of freedom
AIC: 65.18

Number of Fisher Scoring iterations: 6

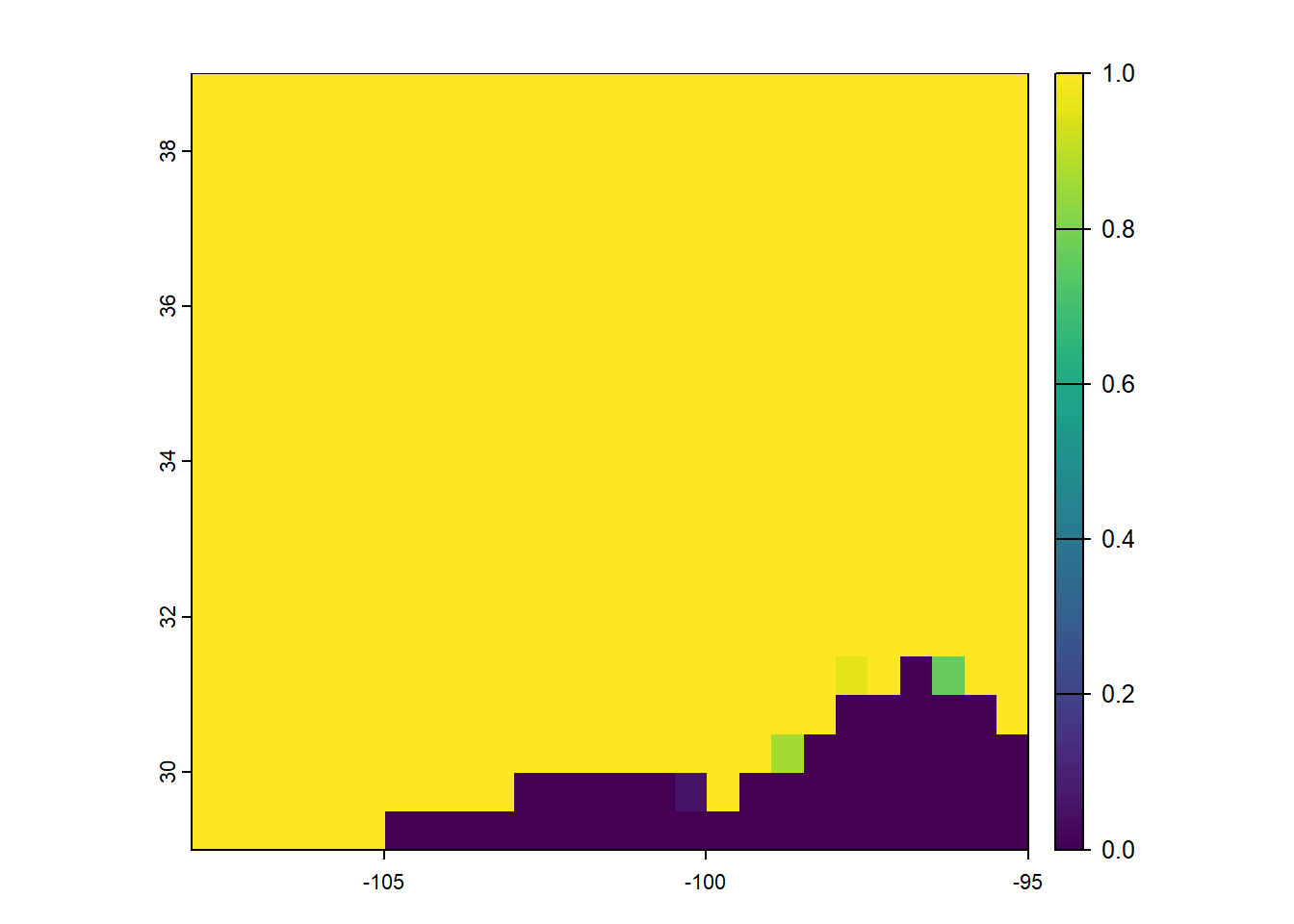

Predict model results across entire study area:

Code

newpreds <- predict(pred.stack, logistic.carolyn, type = "response")
plot(newpreds)
